Welded Wire Mesh: Wire Grid System for Reinforcement, Enclosures, and Protective Fencing
Product Picture

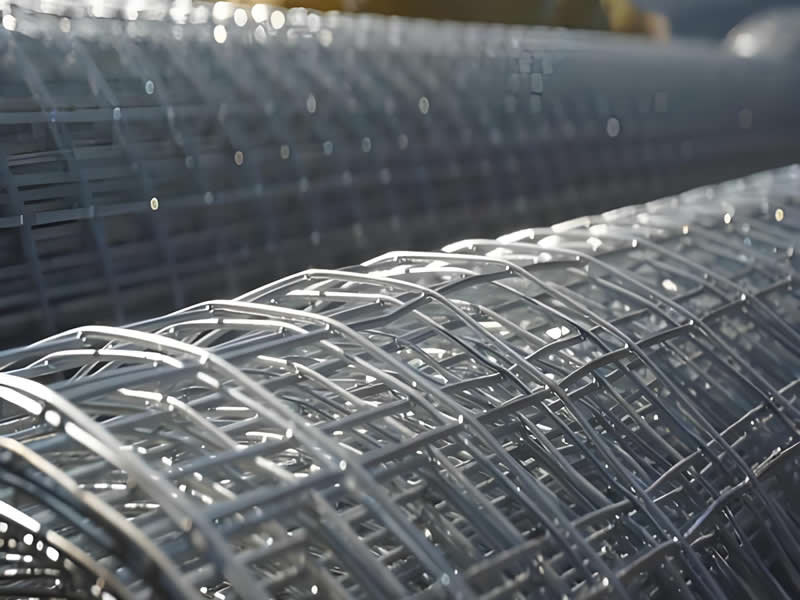

Galvanized Welded Wire Mesh

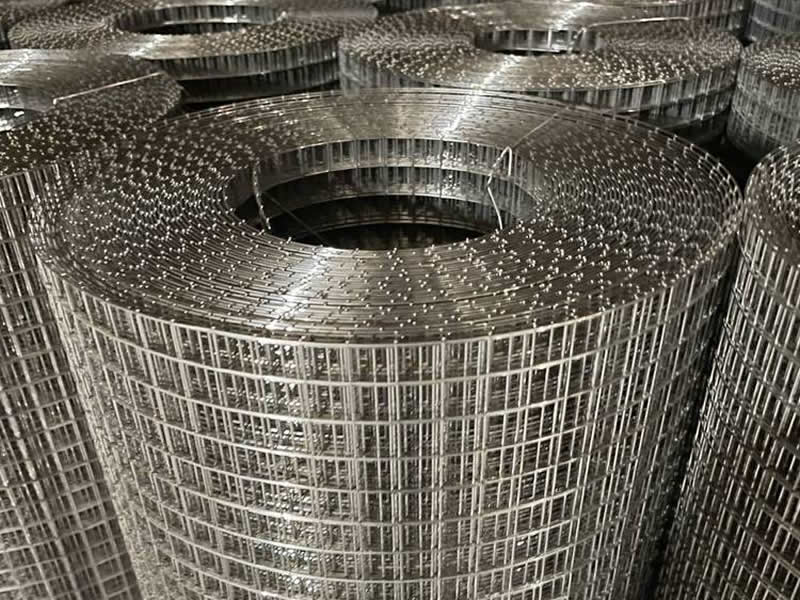

Stainless Steel Welded Wire Mesh

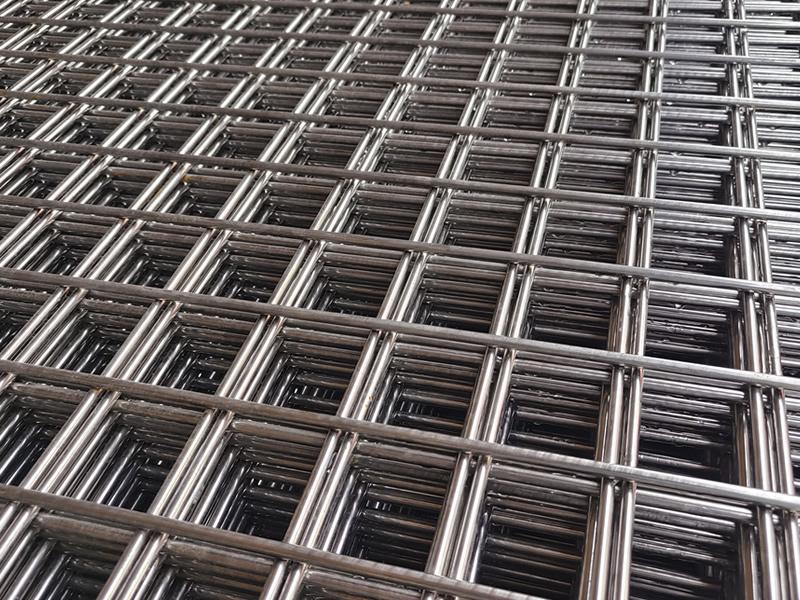

Welded Wire Mesh Panels

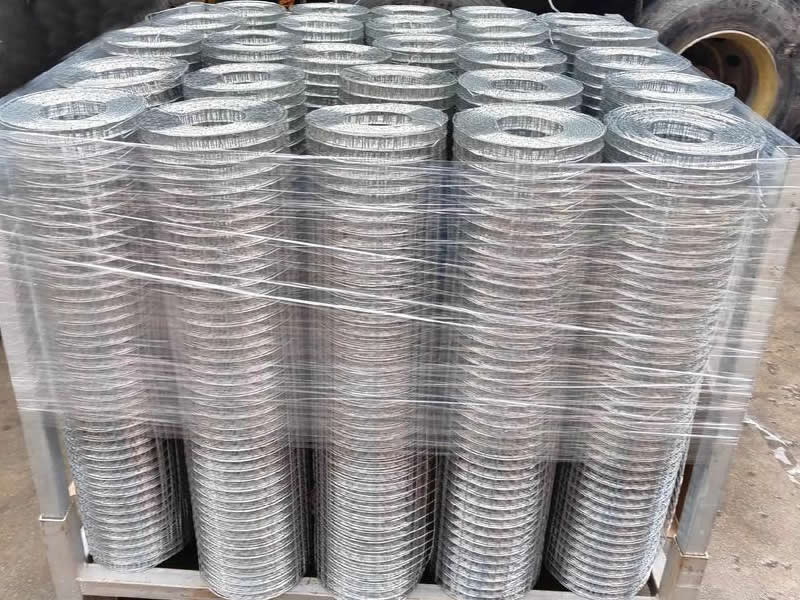

Welded Wire Mesh Pack
Welded wire mesh is made from steel wires welded at their intersections, forming a square or rectangular grid. It's used for fencing, animal cages, concrete reinforcement, and security barriers. Classifications include wire gauge, mesh opening size, material (galvanized, PVC-coated, stainless steel), and roll or panel form.
Specifications
- Material: Available in low carbon steel, stainless steel, or galvanized steel.
- Wire Diameter: Wire diameters typically range from 0.5 mm to 6.0 mm depending on use.
- Mesh Opening Size: From 6 mm × 6 mm to 150 mm × 150 mm.
- Sheet or Roll Width: Standard widths are commonly 0.6 m, 1.0 m, 1.2 m, or 2.0 m.
- Sheet or Roll Length: Roll lengths are usually 10 m, 25 m, or 30 m; sheets up to 6 m.
- Surface Treatment: Finishes include hot-dip galvanized, electro-galvanized, or PVC-coated.
- Mesh Shape Variants: Available in square mesh or rectangular mesh configurations.
- Welding Technique: Welded at every intersection using spot welding or continuous welding.
- Tensile Strength: 400 MPa to 700 MPa; resists bending and cutting.
- Delivery Form: Supplied in flat panels or compact rolls based on wire thickness.
- Application Areas: Used in fencing, concrete reinforcement, cages, shelving, and partitions.
