Galvanized Steel Mesh Screen: Moderate Security and Airflow Needs
Product Picture

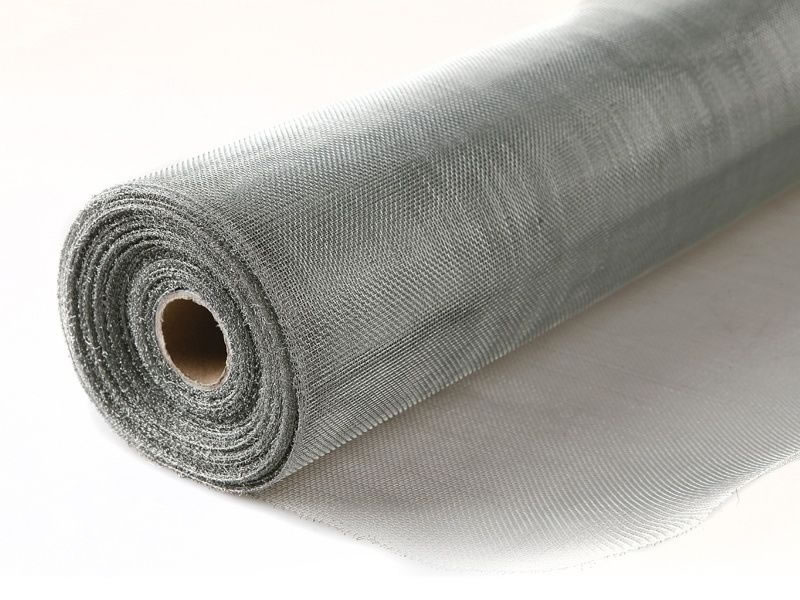

Galvanized Steel Window Screen Roll for Insect

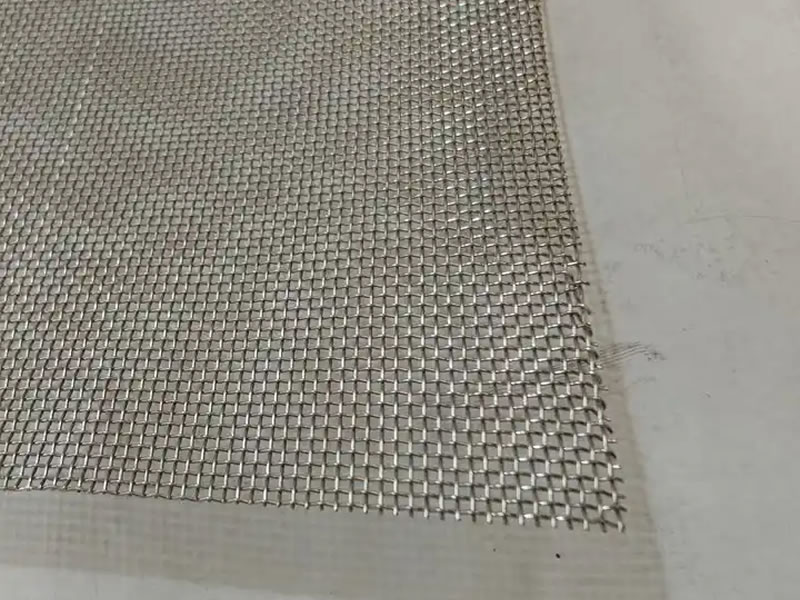

Galvanized Window Screen with Square Openings

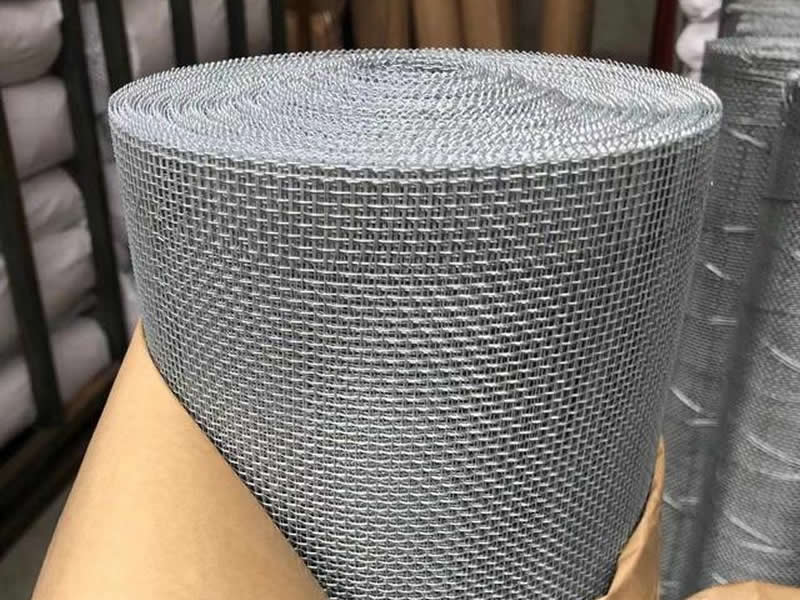

Galvanized Window Netting Roll
Galvanized Steel Window Mesh in Storage
Galvanized steel window screen is a zinc-coated mesh used for insect protection, ventilation, and light security in windows and doors. It resists rust and corrosion, making it suitable for both indoor and outdoor use. Classified by mesh count and wire gauge, it offers durability, good airflow, and cost-effective performance in residential and industrial settings.
Specifications
- Material Type: Made from low-carbon steel wire with zinc coating.
- Mesh Count: Common mesh sizes include 14×14, 16×16, and 18×14.
- Wire Diameter: Ranges 0.20mm to 0.40mm.
- Aperture Size: Approx. 1.1mm to 1.6mm.
- Galvanizing Type: Available in electro or hot-dip galvanized finish.
- Roll Width: Standard widths range from 0.6 m to 1.5 m.
- Roll Length: Common roll lengths include 15 m, 30 m, and 50 m.
- Weave Pattern: Predominantly plain weave.
- Zinc Coating: Varies, 10-200 g/m².
- Surface Color: Usually silver-gray, with optional dark gray finish.
- Rust Resistance: Moderate rust resistance suitable for general use.
- Applications: Used for windows, doors, vents, and insect barriers.
