Razor Barbed Wire: High-Security Fencing for Critical Perimeter Protection

Product Picture

BTO-30 Razor Wire

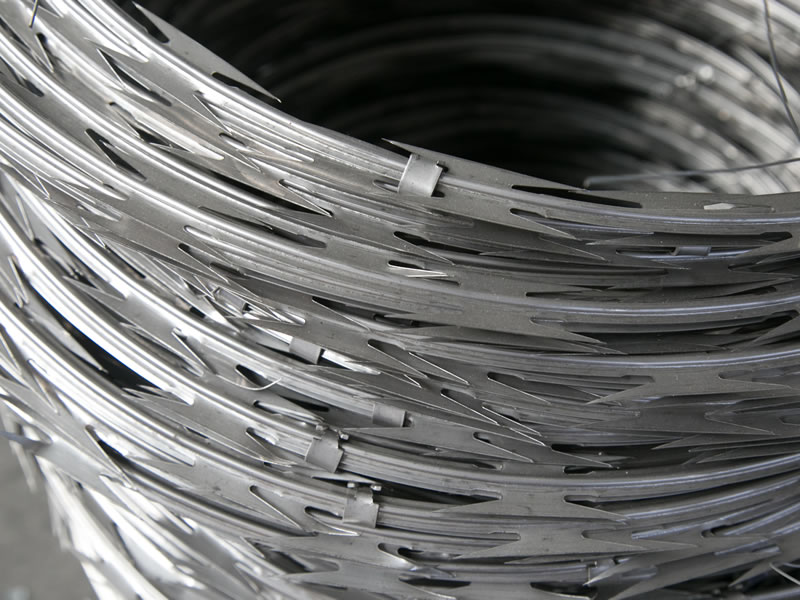

CBT-65 Cross Type With Clips

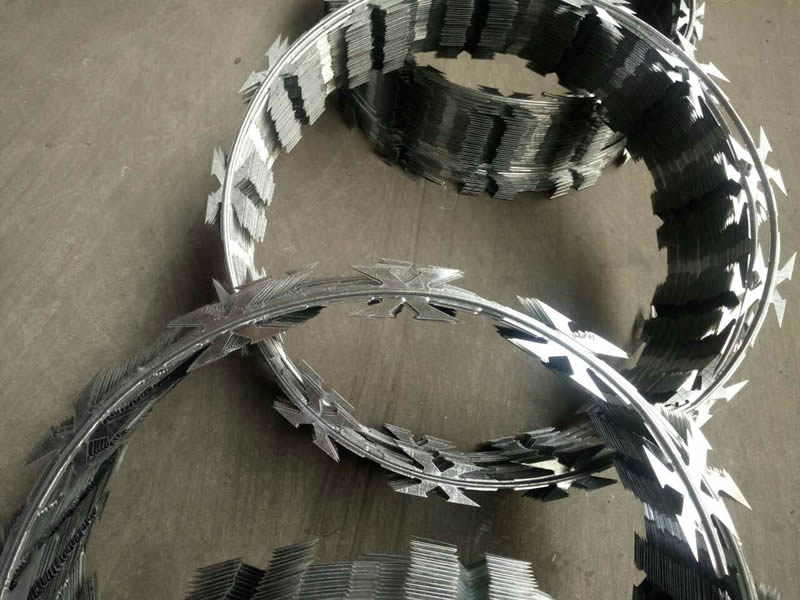

CBT-60 Razor Wire

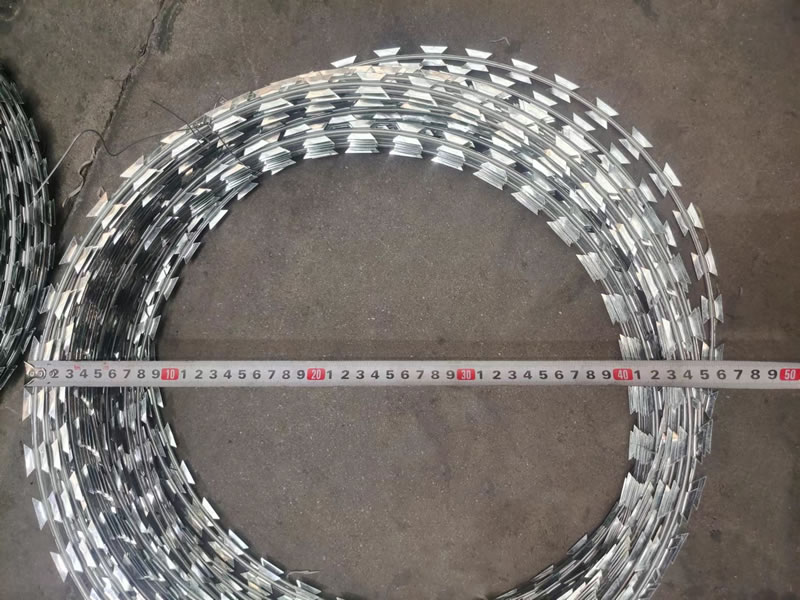

BTO-22 Razor Wire

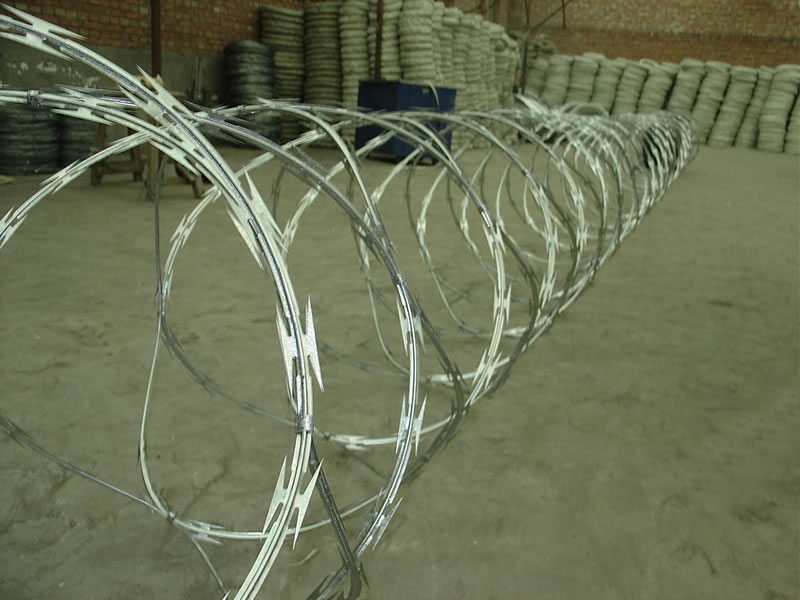

CBT-65 Crossed Type

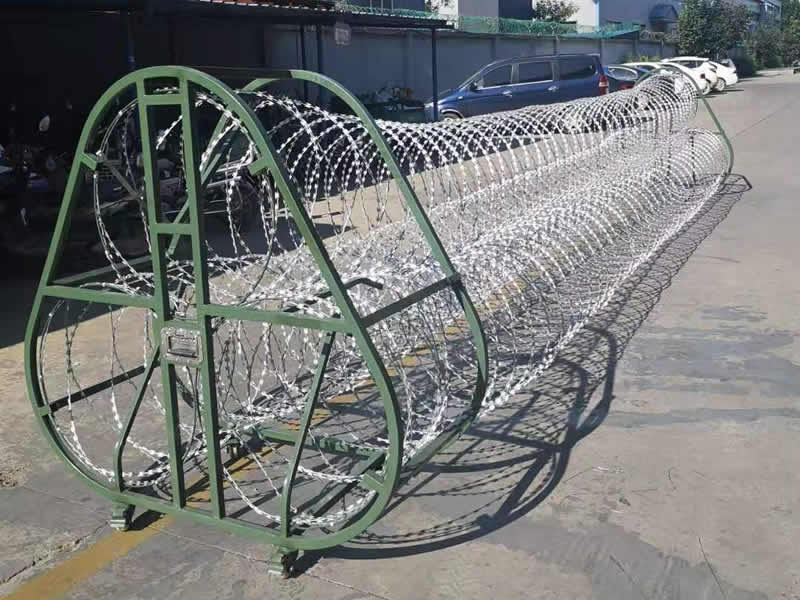

New System Razor Wire

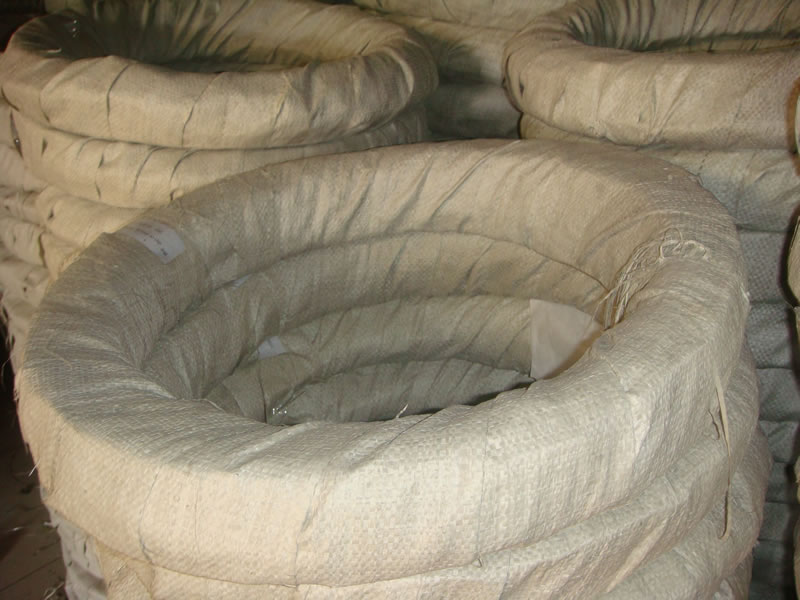

Razor Barbed Wire Common Packing

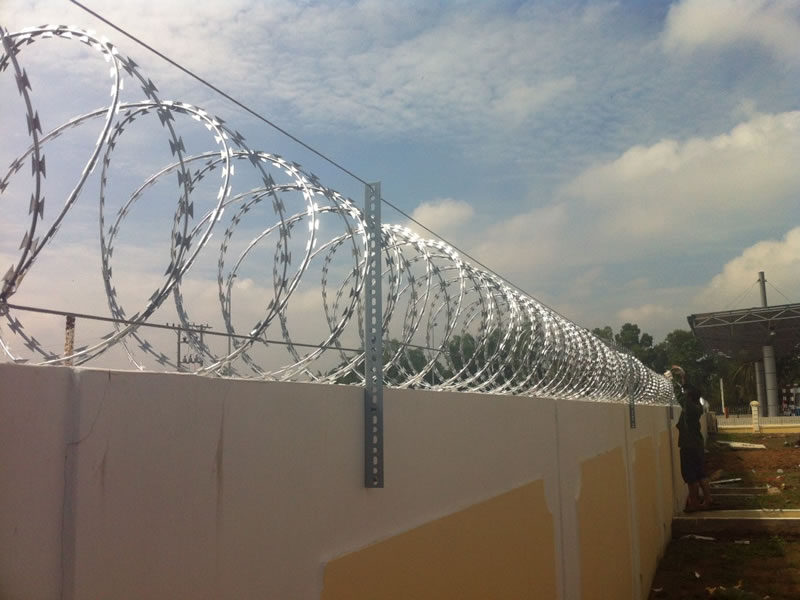

BTO-22 Razor Wire Fence

Razor barbed wire is a high-security fencing material made of sharp-edged steel strips wrapped around a core wire. It is used for perimeter protection in military zones, prisons, borders, and industrial facilities. Common classifications include single coil, cross type, flat wrap, and concertina coil, each offering different levels of deterrence and installation styles.

Specifications

• Razor Coil Diameter: Typically ranges from 300 mm to 980 mm depending on security level and application.
• Barb Length: Commonly between 10 mm and 65 mm to suit different deterrent needs.
• Barb Spacing: Ranges from 10 mm to 100 mm, with closer spacing for higher security.
• Barb Thickness: Generally 0.4 mm to 0.6 mm thick galvanized or stainless steel.
• Core Wire Diameter: Standard diameter is 2.5 mm ± 0.1 mm for strength and durability.
• Material Options: Galvanized steel, stainless steel (304 or 316), or zinc-aluminum alloy.
• Coil Length (Expanded): Expanded coil length ranges from 5 meters to 25 meters per roll.
• Number of Loops per Coil: Usually between 30 to 60 loops depending on coil size and type.
• Weight per Coil: Varies from 7 kg to 30 kg depending on type, material, and size.
• Coil Type Classification: Includes single coil, concertina, flat wrap, and cross type models.

Blade type	Picture of blade	Thickness	Wire dia	Barb length	Barb width	Barb spacing
BTO-10		0.5±0.05	2.5±0.1	10±1	13±1	26±1
BTO-12		0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18		0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22		0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28		0.5±0.05	2.5±0.1	28±1	15±1	45±1
BTO-30		0.5±0.05	2.5±0.1	30±1	18±1	45±1
CBT-60		0.6±0.05	2.5±0.1	60±2	32±1	100±2
CBT-65		0.6±0.05	2.5±0.1	65±2	21±1	100±2
