Common Barbed Wire: Cost-Effective Solution for Agricultural and Perimeter Security

Product Picture

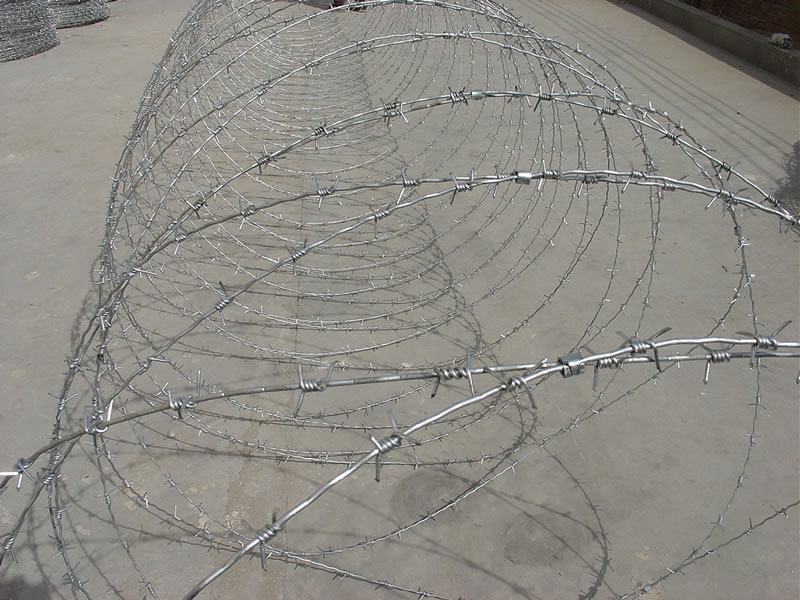

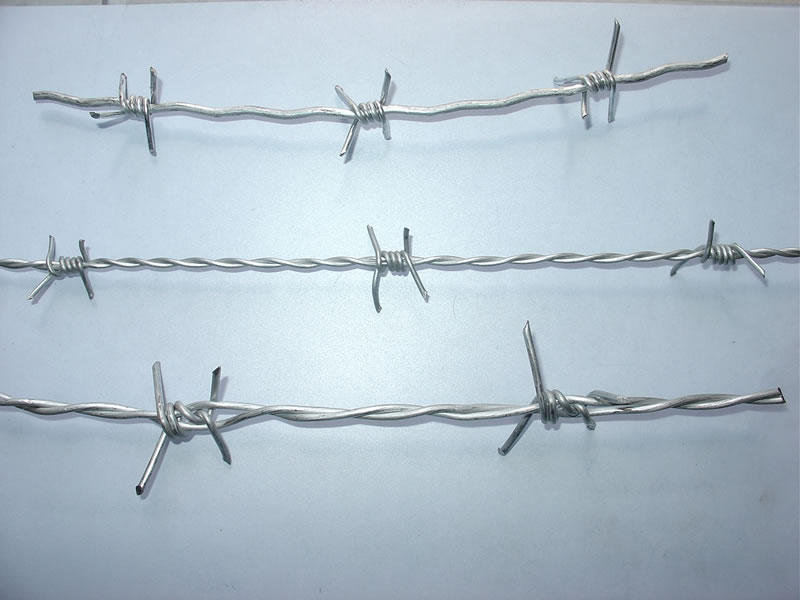

Galvanized Barbed Wire

Galvanized Barbed Wire Coil

Galvanized Barbed Wire Rolls

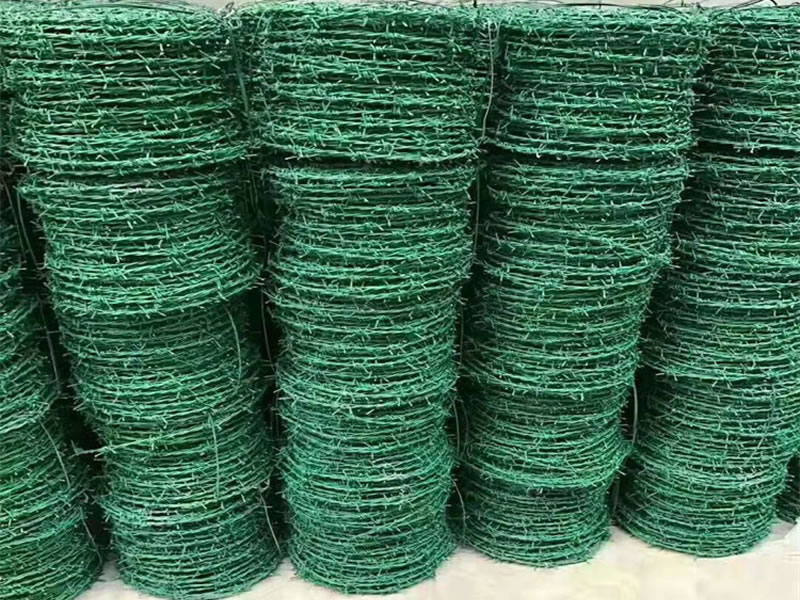

PVC Barbed Wire Rolls

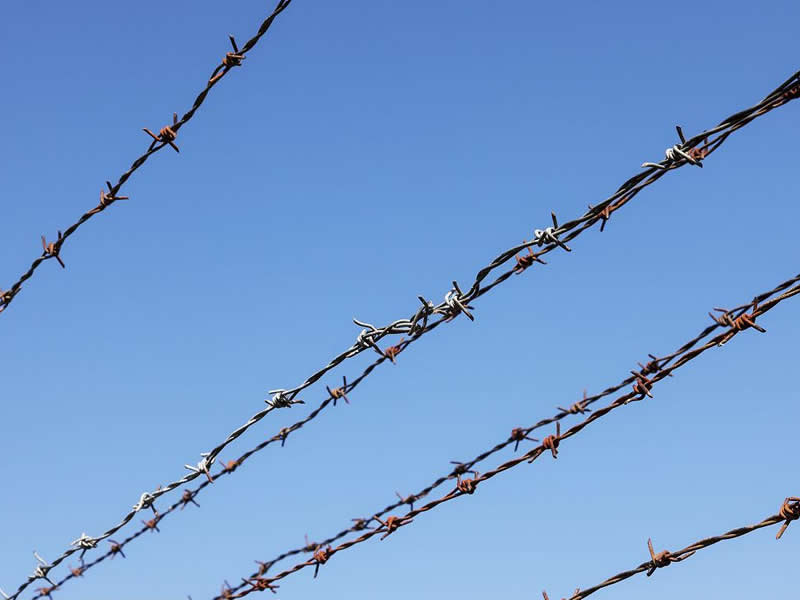

Common Barbed Wire Fence

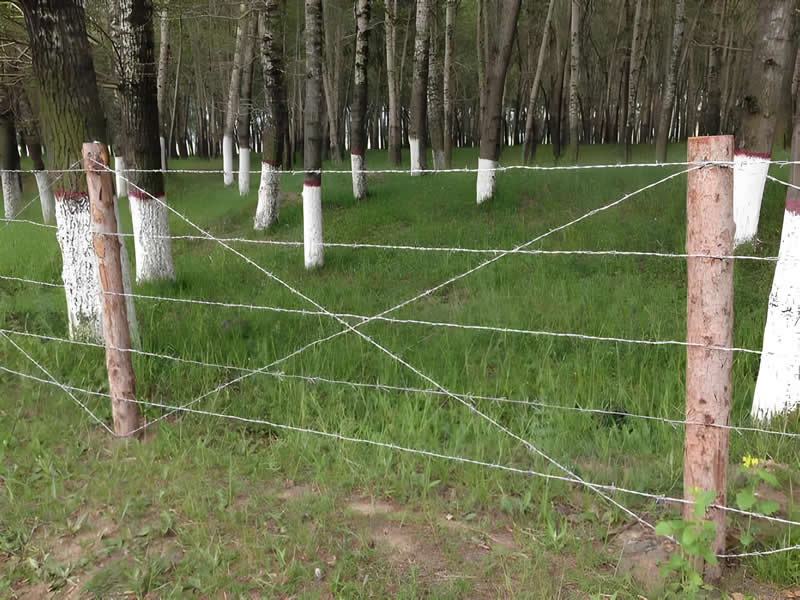

Common Barbed Wire Fence

Common barbed wire is a traditional fencing material made of twisted steel wire strands with sharp barbs spaced at intervals. It is widely used for agricultural fencing, livestock enclosures, and property boundaries. Classifications include single-strand and double-strand types, with variations in barb spacing, barb length, and wire gauge to meet different security and containment needs.

Specifications

• Wire Diameter Range: Usually 1.4 mm to 2.8 mm for line and barb wires.
• Barb Length Range: Ranges from 13 mm to 30 mm depending on design.
• Barb Spacing Options: Commonly spaced at 75 mm to 150 mm intervals.
• Number of Wire Strands: Available in single-strand or double-strand types.
• Twist Type and Pattern: Traditional reverse twist or single direction twist.
• Coil Weight per Roll: Typically ranges from 15 kg to 50 kg per coil.
• Coil Length Range: Standard lengths range between 100 m and 500 m.
• Tensile Strength Range: Low-carbon or high-tensile steel, 350–1300 MPa.
• Surface Coating Type: Galvanized or PVC-coated for corrosion resistance.
• Application Standards: Often made to ASTM A121 or equivalent standards.
