Steel Grating: Serrated or Plain Surface for Safe and Durable Walkways and Platforms

Product Picture

Galvanized Steel Grating Panels

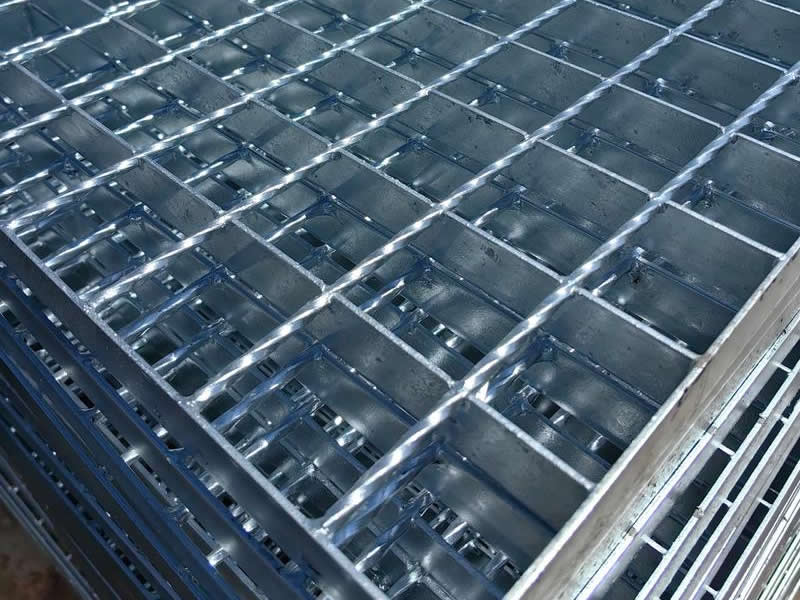

Twisted Square Steel Grating

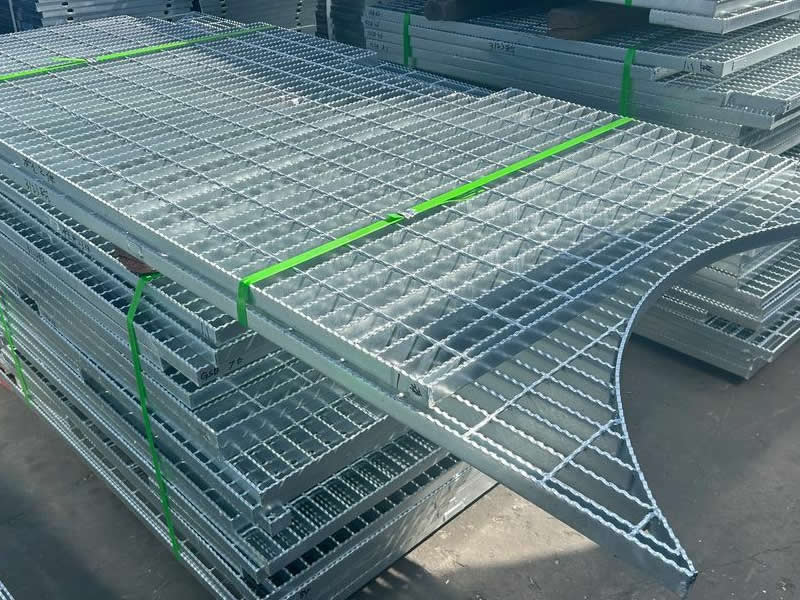

Mild Steel Floor Grating

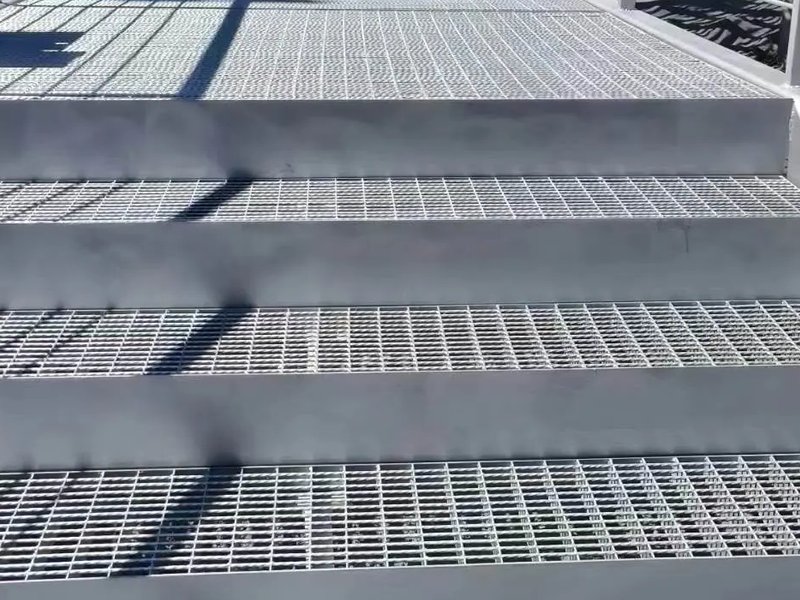

Welded Steel Grating for Stair Treads

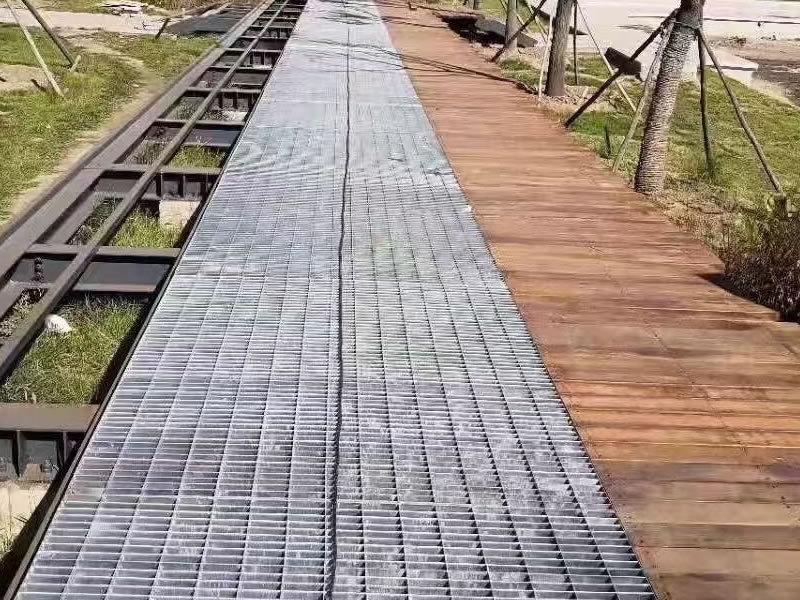

Hot-dip Galvanized Trench Grate

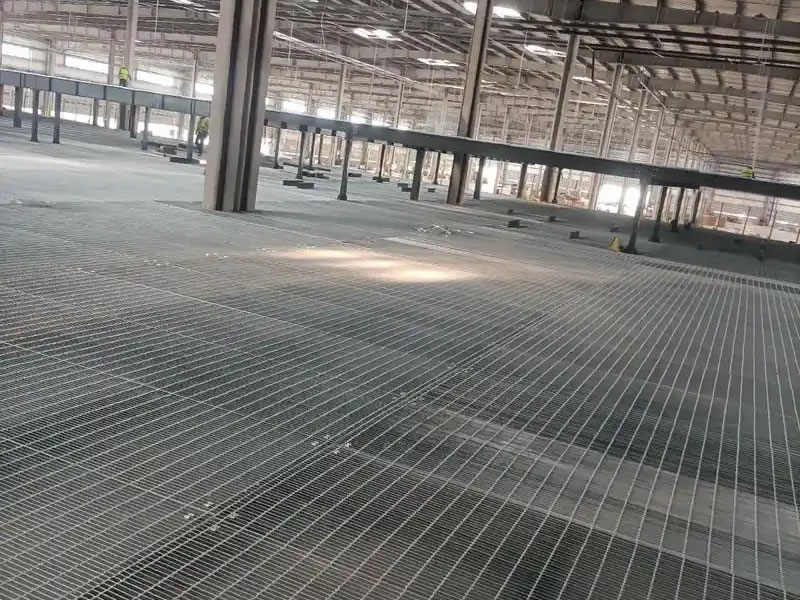

Industrial Steel Grating Panel

Steel grating is a durable, open mesh panel made from steel bars, typically welded or press-locked. It's used for flooring, walkways, platforms, and drainage covers in industrial, commercial, and public areas. Classifications include bar size, spacing, and surface type (plain or serrated), often galvanized for corrosion resistance.

Specifications

Material: Manufactured from carbon steel, galvanized steel, or stainless steel.
Bearing Bar Size: Common bar sizes range from 20×3 mm to 100×10 mm depending on load needs.
Cross Bar Spacing: Typical spacing is 50 mm or 100 mm center-to-center.
Bearing Bar Spacing: Most common spacing values are 30 mm, 40 mm, and 60 mm.
Panel Length and Width: Standard panel sizes are 1000–6000 mm in length and up to 1200 mm width.
Surface Type: Available in plain surface or serrated surface for anti-slip function.
Fabrication Methods: Gratings are welded, pressure-locked, or swage-locked types.
Cross Bar Type: Twisted square, round, or flat; for stability.
Load-Bearing Direction: Bars run in one direction only for proper load support and safety.
Finishing Treatment: Hot-dip galvanizing is most common; also available untreated or painted.
Applications: Used in walkways, platforms, stair treads, trench covers, and flooring.
