868/656 Double Wire Fence: Secure Installations with Twin-Wire Strength for Schools and Industrial Applications
Product Picture

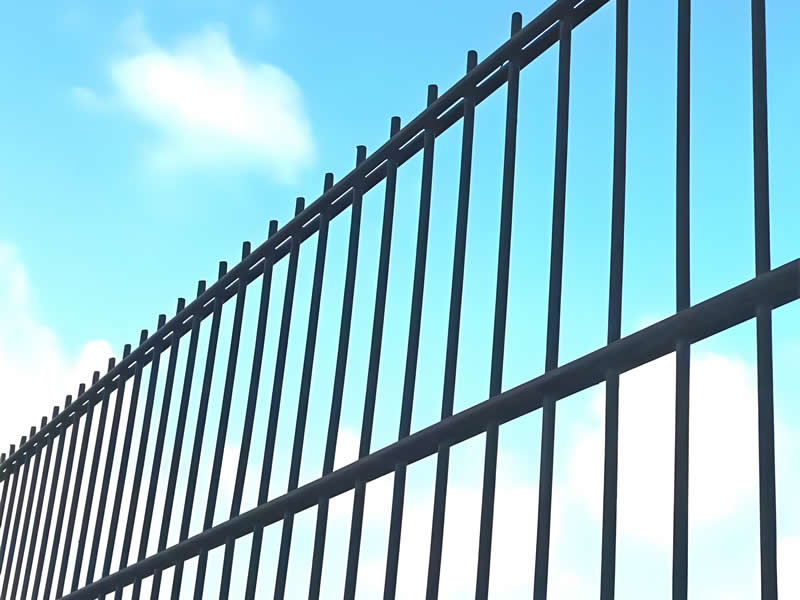

PVC Double Wire Fence
Green Powder-Coated 868 Double Wire Fence

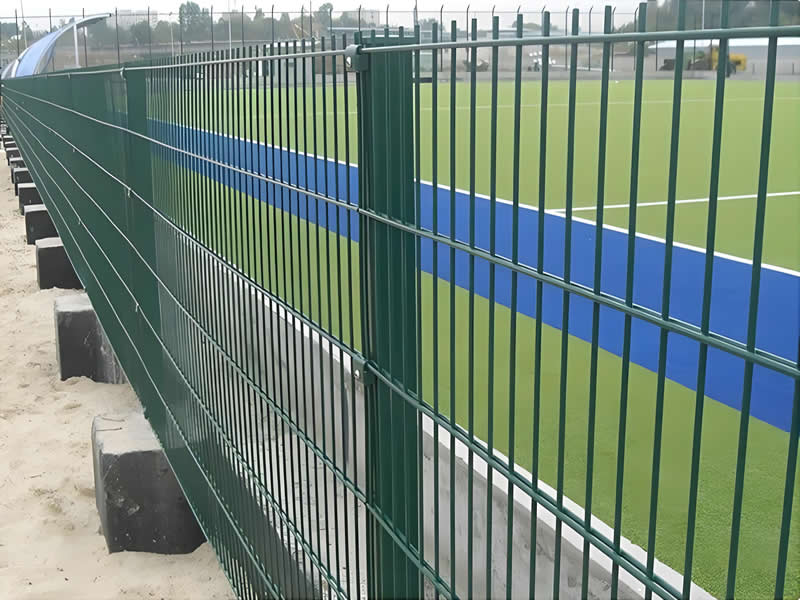

Stadium Double Wire Fence

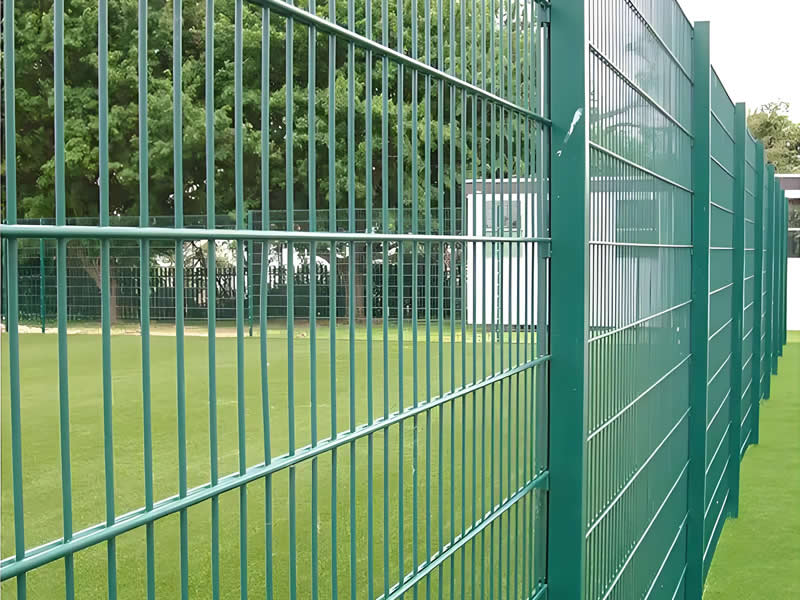

Sports Enclosures Double Wire Fence
Grey 868 Double Wire Fence

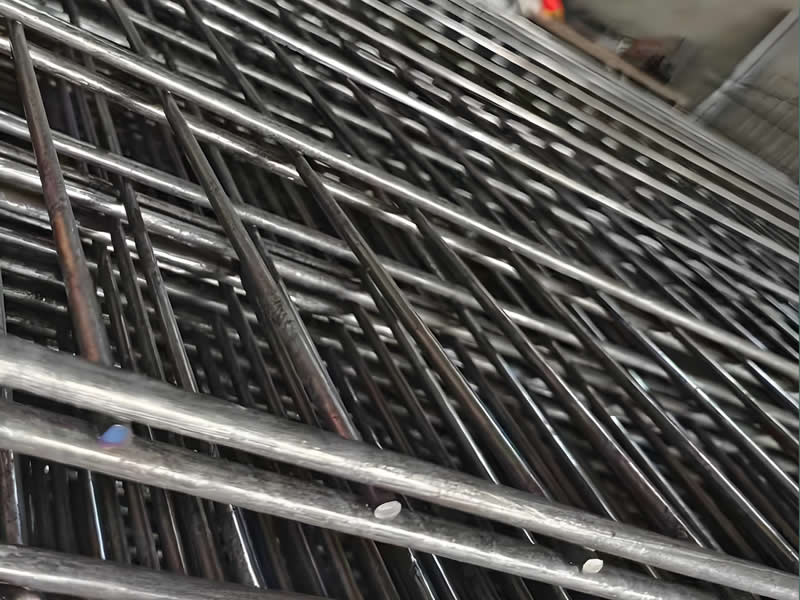

868/656 Double Wire Fence Panel
868/656 double wire fence features two horizontal wires sandwiching a single vertical wire, creating a rigid panel. It's used for sports fields, industrial sites, and schools, offering high rigidity and security. Classifications include wire gauge (868, 656) and coatings like galvanized or powder-coated.
Specifications
- Material: High-quality steel wire; galvanized or powder-coated.
- Wire Diameter: 656 type: 6/5/6 mm; 868 type: 8/6/8 mm (horizontal/vertical/horizontal).
- Mesh Opening Size: Standard mesh size is 200 mm × 50 mm for all models.
- Panel Height: Typical panel heights: 1030 mm, 1230 mm, 1530 mm, 1730 mm, 2030 mm, 2430 mm.
- Panel Width : Panel widths are commonly 2500 mm or 3000 mm for most applications.
- Post Size: Posts usually measure 60×40 mm, 60×60 mm, or 80×60 mm square or rectangular.
- Post Spacing: Posts are spaced to match panel width, typically 2.5 m to 3.0 m apart.
- Post Type: Heavy-duty RHS posts; for strength and attachment.
- Surface Finish: Available in hot-dip galvanized, powder-coated, or galvanized + powder-coated.
- Color Options: Common colors include green (RAL6005), black (RAL9005), and grey (RAL7016).

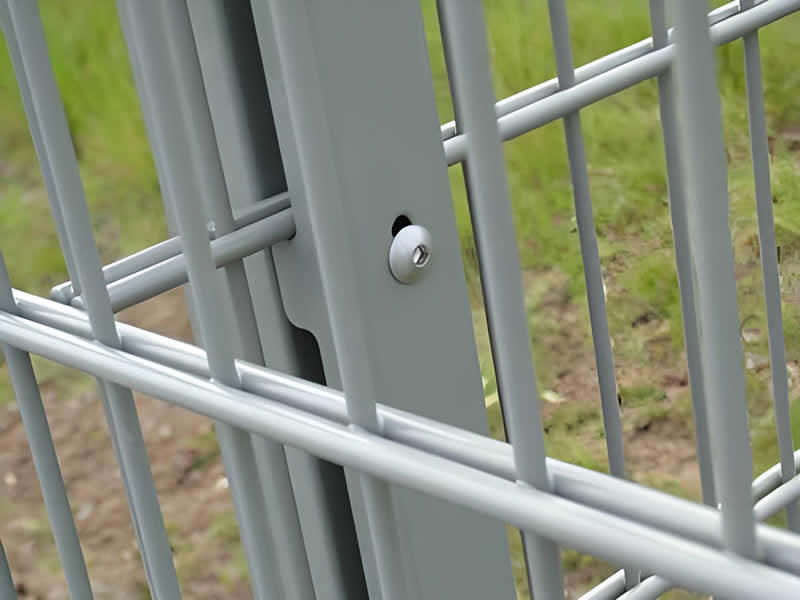

- Fixing Method: Fixed with metal clips and tamper-resistant bolts for enhanced security.
- Applications: Used for schools, parks, warehouses, commercial and industrial perimeters.
