3D Bending Fence: Welded Mesh Panels with V-Shaped Bends for Residential, School, and Public Use
Product Picture

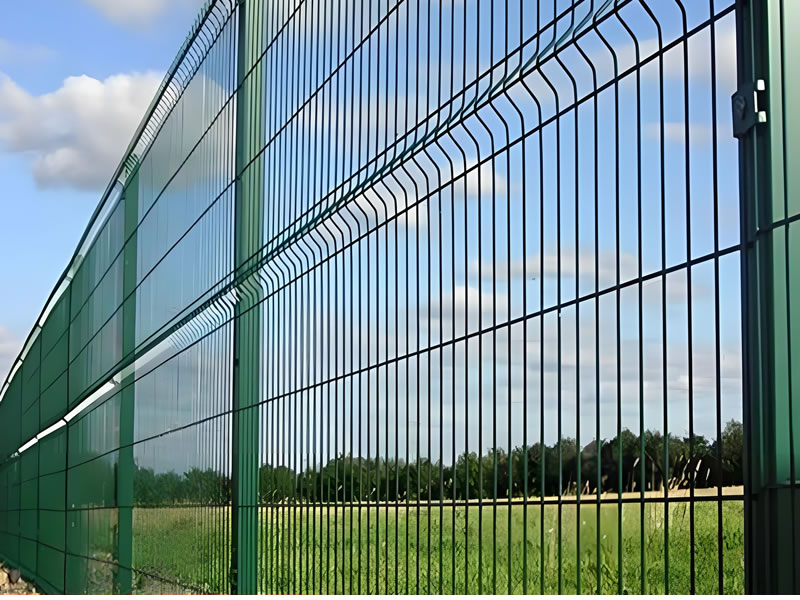

Green-Coated 3d Panel Fencing

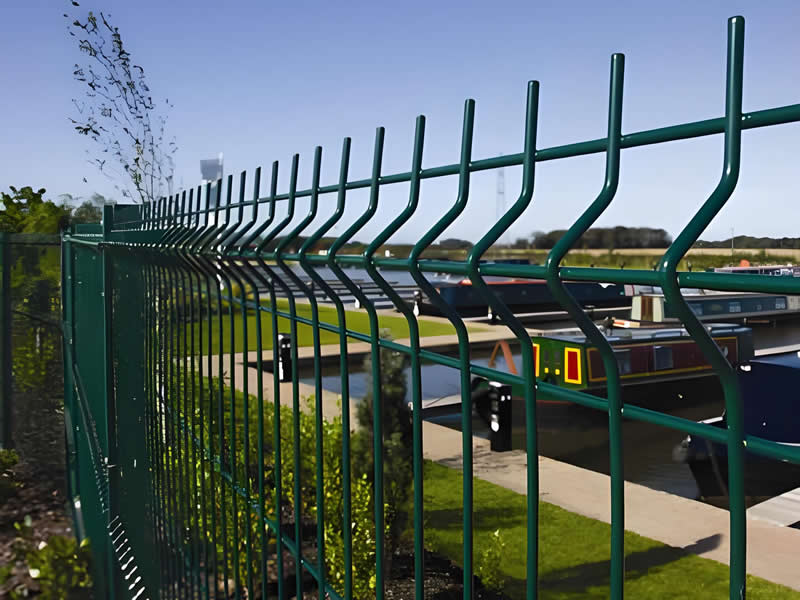

PVC-Coated 3d Bending Fence

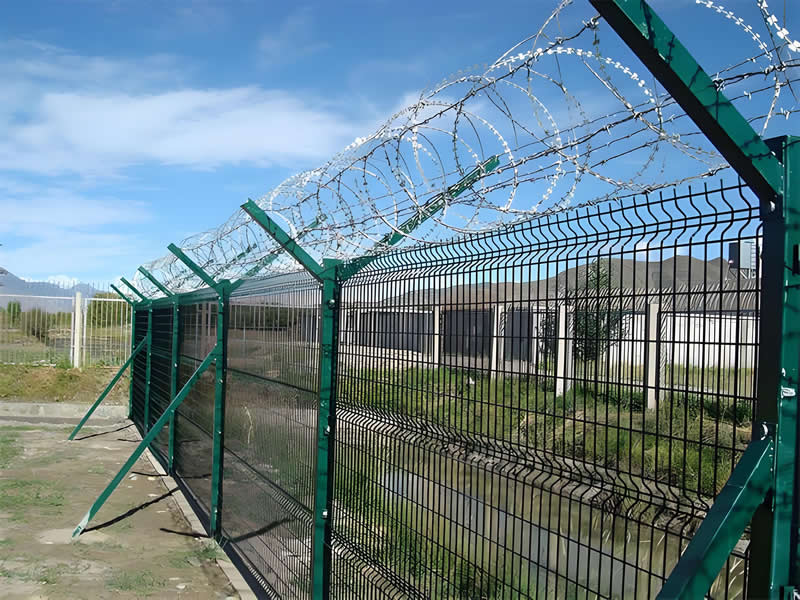

3d Fence With Razor Wire at the Top

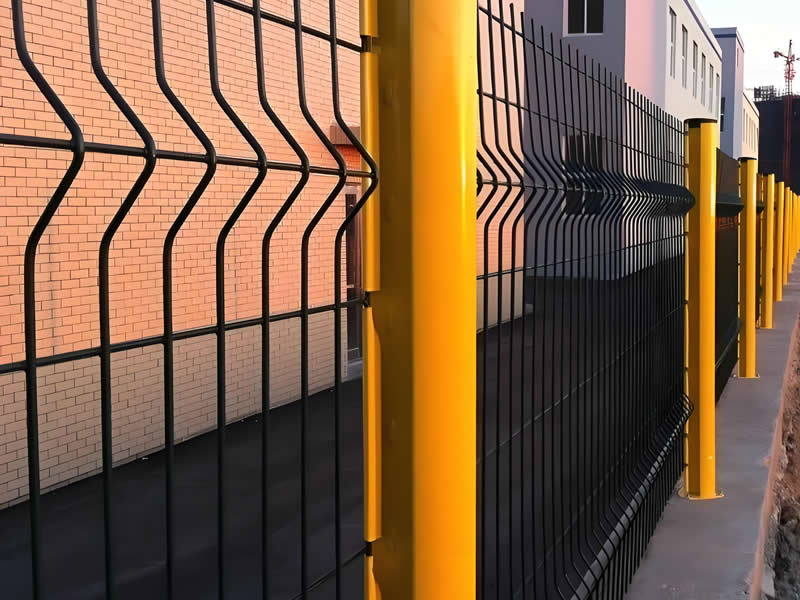

Black 3D Welded Wire Fence

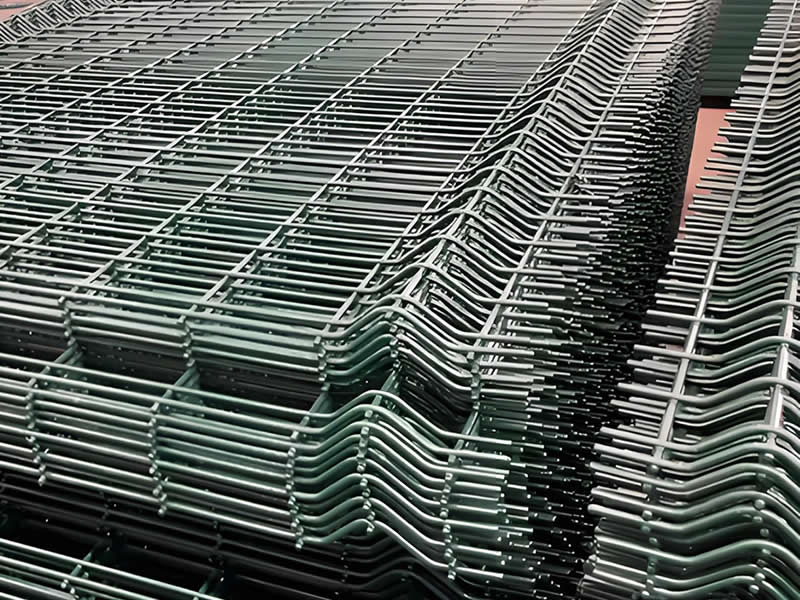

3D Bending Fence Welded Mesh Panels

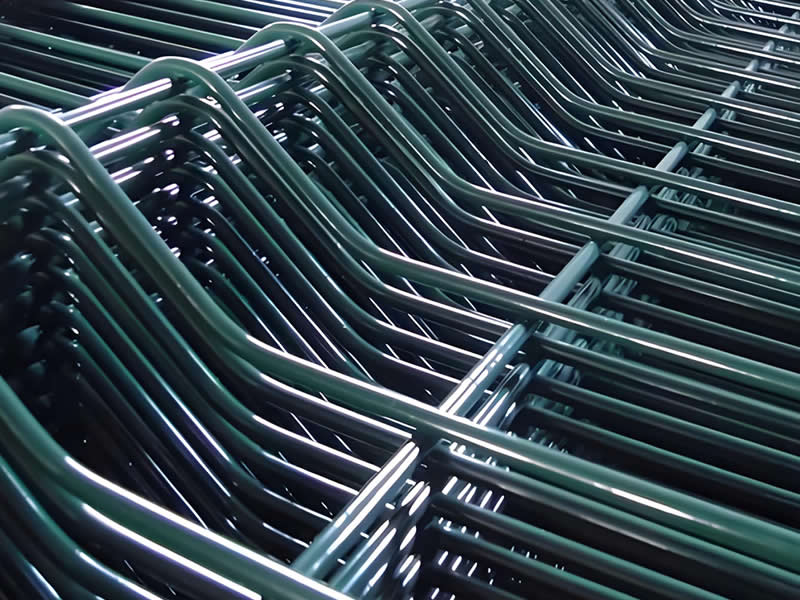

Close-up View of 3D Fence Panels
3D bending fence, or V-mesh panel fence, features horizontal V-shaped bends for enhanced rigidity and aesthetic appeal. It's widely used for parks, residential areas, and commercial properties, offering good security and visibility. Classifications include wire gauge, mesh size, and various coatings like galvanized or powder-coated.
Specifications
- Material: Constructed from high-quality steel wire. Often galvanized or polyester powder-coated for durability.
- Wire Diameter: Available wire diameters typically range from 4.0 mm to 6.0 mm.
- Mesh Opening Size: Standard mesh size is usually 200 mm × 50 mm.
- Panel Height: Common heights include 1030 mm, 1230 mm, 1530 mm, 1730 mm, 2030 mm, 2430 mm.
- Panel Width: Panel widths are generally 2000 mm, 2500 mm, or 3000 mm.
- Number of V-Bends: Panels usually have 2 to 4 V-shaped bends depending on height.
- Post Type: Supported by square or rectangular hollow section (RHS) posts. Posts are designed for secure panel attachment and stability.
- Post Size: 40×60 mm, 60×60 mm, or 60×80 mm tubes.
- Post Spacing: Typically spaced 2.0 m to 2.5 m apart.
- Surface Treatment: Galvanized, powder-coated, or galvanized plus powder-coated finishes are used.
- Common Color: Green (RAL6005), black (RAL9005), and grey (RAL7016) are most common.
- Application: Used in residential, commercial, school, garden, and public facilities.
