Fiberglass Window Screen: Insect Protection in Residential and Commercial Spaces
Product Picture

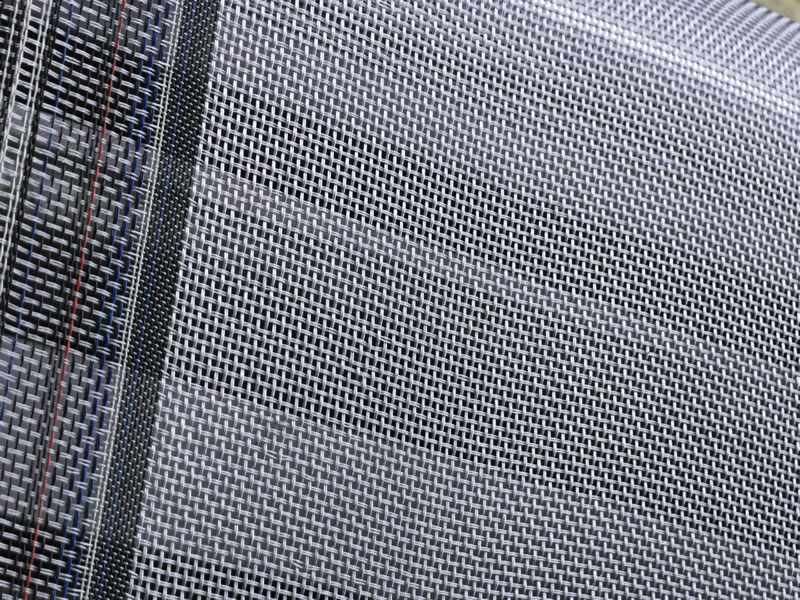

Close-Up View of Fiberglass Window Screen

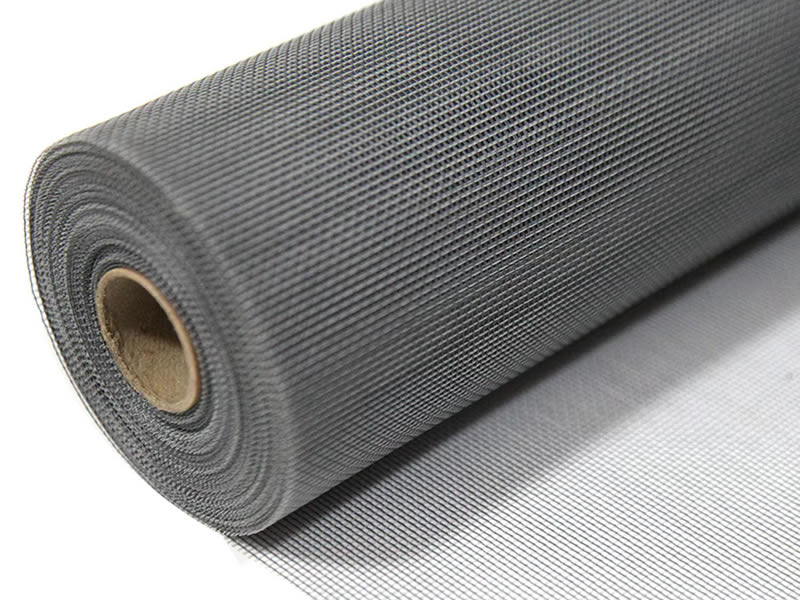

Grey Fiberglass Window Screen Roll
Black Fiberglass Window Screen Roll

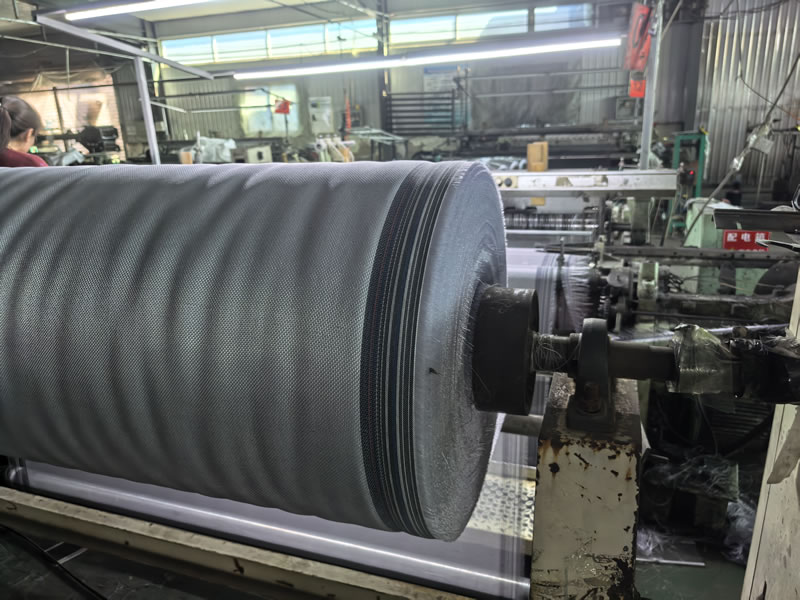

Fiberglass Window Screen in Production

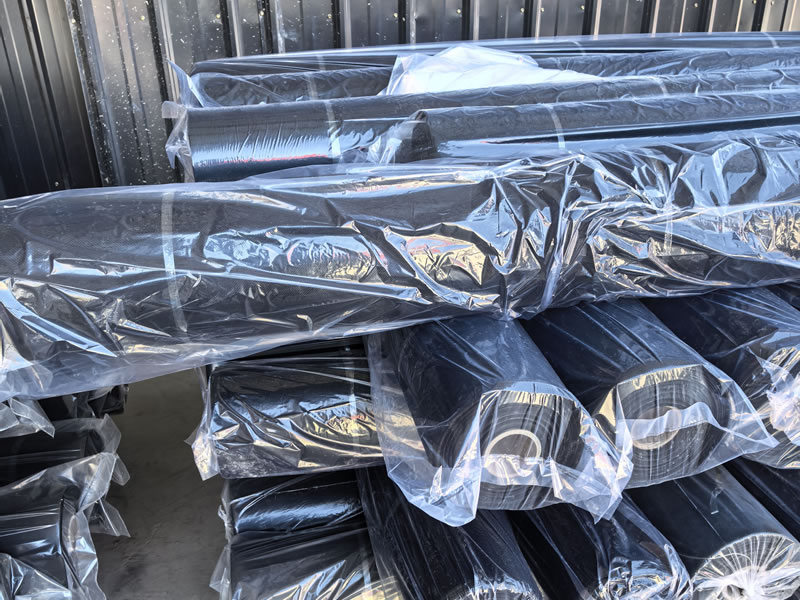

Fiberglass Window Screen Pack

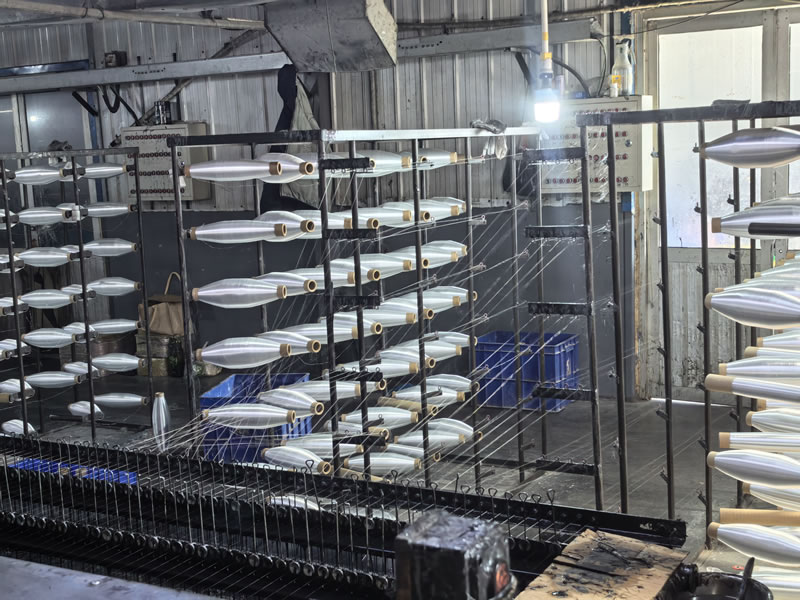

Fiberglass Window Screen Workshop
Fiberglass window screen is a lightweight, rust-resistant mesh used for insect protection in windows, doors, and ventilation spaces. It is classified by mesh count (e.g., 18×16, 20×20) and coating types such as PVC or vinyl. Commonly applied in residential and commercial buildings, it offers good airflow, visibility, and durability.、
Specifications and Dimensions
- Mesh Count: Common mesh counts include 18×16, 20×20, and 18×14 per square inch.
- Wire Diameter: Typical wire thickness ranges from 0.25 mm to 0.33 mm.
- Opening Aperture: About 1.1mm to 1.3mm.
- Material Composition: PVC-coated fiberglass yarn.
- Weight (GSM): Typically 100 to 120 g/m².
- Roll Width: Standard roll widths range from 0.6 m to 2.4 m.
- Roll Length: Usual roll lengths are 15 m, 30 m, and 50 m.
- Material Type: Made from fiberglass yarn coated with durable PVC.
- Color Options: Available colors include grey, black, white, and green.
- Weaving Method: Plain weave is commonly used for consistent mesh pattern.
- UV Resistance: UV-treated screens extend outdoor lifespan and durability.
- Flame Retardancy: Screens may be flame-retardant depending on coating.
- Application Areas: Used in windows, doors, patios, and ventilation panels.
