Aluminum Alloy Window Screen: Lightweight, Rust-Resistant Mesh for Insect Protection and Ventilation

Product Picture

Close-Up View of Aluminum Alloy Window Screen

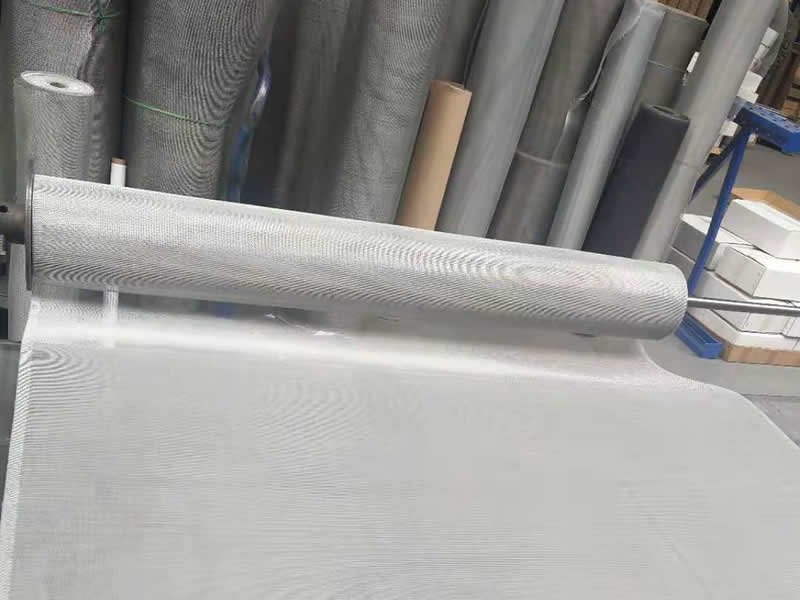

Large Roll of Aluminum Window Screen

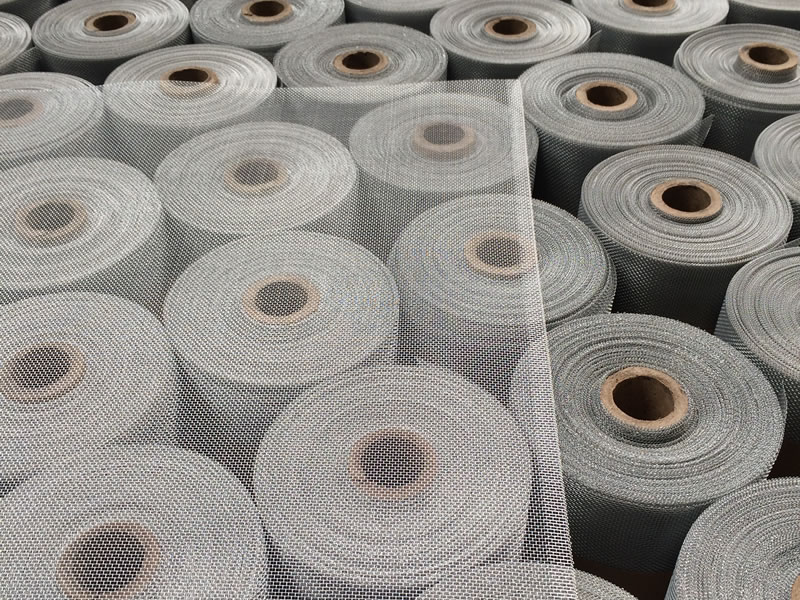

Aluminum Alloy Window Screen Mesh Rolls

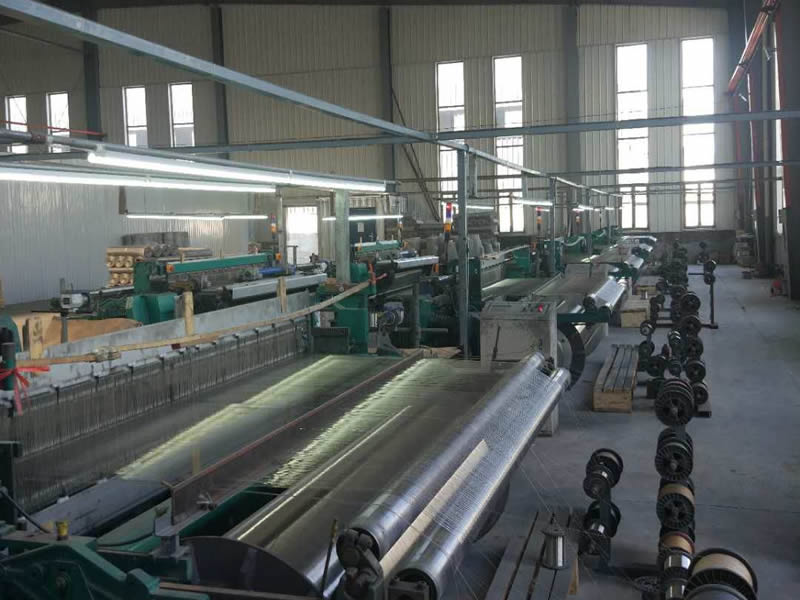

Aluminum Alloy Window Screen Workshop

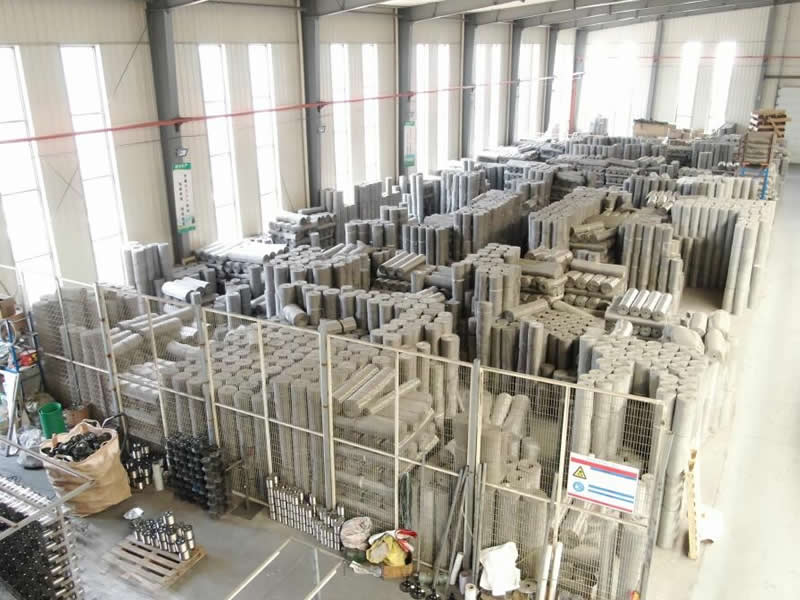

Warehouse Inventory of Rolled Window Screens

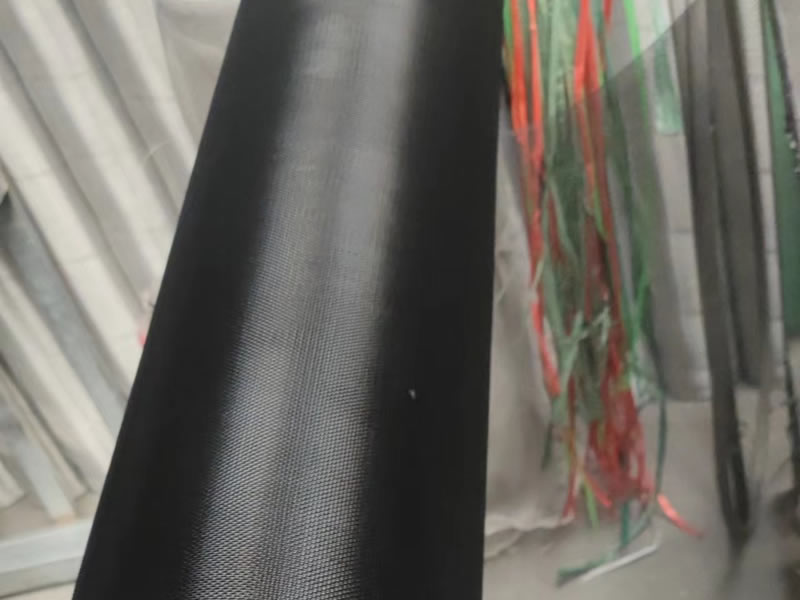

Black Coated Aluminum Alloy Window Screen Roll

Aluminum alloy window screen is a lightweight, corrosion-resistant mesh used for insect protection in windows, doors, and ventilation areas. It offers good airflow and durability in outdoor environments. Classifications include plain aluminum, aluminum-magnesium alloy, and coated types, with various mesh counts and colors to suit residential, commercial, and industrial applications.

Specifications

• Material Composition: Made of pure aluminum or aluminum-magnesium alloy.
• Mesh Count Range: Typically ranges from 14×14 to 18×16 per square inch.
• Wire Diameter Range: Standard diameter ranges from 0.18 mm to 0.28 mm.
• Roll Width Options: Common widths include 0.6 m, 0.8 m, 1.0 m, to 1.5 m.
• Roll Length Range: Standard roll lengths are 30 m, 50 m, or customized.
• Surface Finish Types: Available in plain, epoxy-coated, or anodized finish.
• Color Availability: Common colors: silver, black, charcoal, green, and gray.
• Mesh Opening Size: Aperture size usually ranges from 1.0 mm to 1.5 mm.
• Weave Structure: Predominantly plain weave.
• Edge Finish: Selvage or cleanly trimmed.
• Corrosion Resistance: High resistance to rust, ideal for humid environments.
• Common Applications: Used for insect screening in windows, doors, and vents.

Note: Special size are available according to requirements of customers
