Welded Wire Mesh serves as guards in buildings and factories, as animal enclosure and wire mesh fences in agriculture; welded wire mesh also serves in horticulture industry as guards for trees and plants.
We produce welded wire mesh with following specifications. Custom orders with different width and length is also welcome.

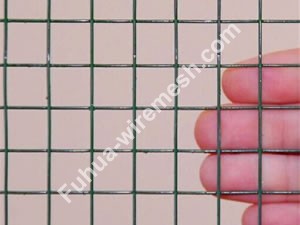

Welded Wire Mesh
Welded Wire Mesh

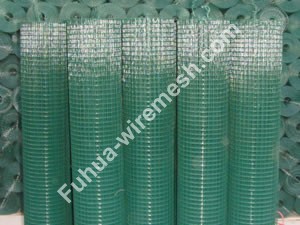

PVC Welded Wire Mesh

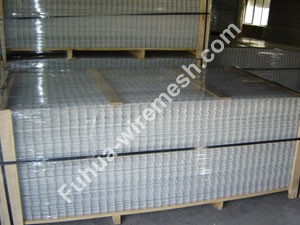

Welded Wire Mesh

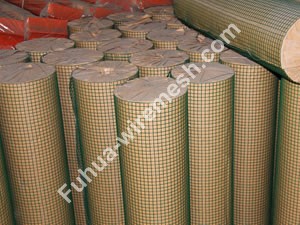

Welded Wire Mesh

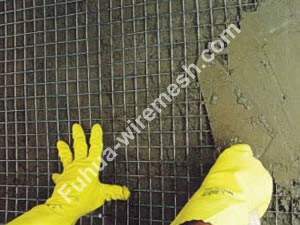

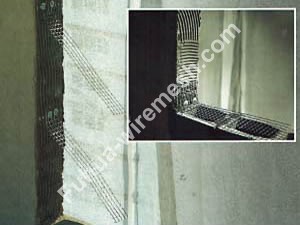

Screen for masonry
Corrosive resistance
Specifications of Welded Mesh | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Technical Note: | ||
Galvanized Fencing Mesh | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
2" x 3" | 50mm x 75mm | 2.0mm,2.5mm,1.65mm |
3" x 3" | 75mm x 75mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2" x 4" | 50mm x 100mm | 2.11mm,2.5mm |
4" x 4" | 100mm x 100mm | 2.0mm,2.5mm |
Technical Note: | ||
PVC coated welded mesh | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
2" x 2 " | 50.8mm x 50.8mm | 15,16,17,18,19,20 |
Technical Note: | ||
